Experts in naval repair and maintenance.

Concrete solutions,
real results.

Each project we carry out is a demonstration of our commitment to quality, delivery times, and technical reliability. These are some of the works that strengthen the trust of our clients.

Barge RIVER 834

Barge RIVER 834 - Imagen 1

Client

Atria Logistics Solutions

Boat type

Liquid bulk cargo barge

Timeline

Start: Abril 2025
End: Abril 2025

General specifications

Total length: 59,46 m
Molded beam: 10,70 m
Capacity: 1560 t
Molded depth: 3,66 m
Draft: 3,56 m

Work Performed

  • Dry docking.
  • Class inspection and certification services.
  • Repair of multiple cofferdams due to structural deformations and cracks.
  • Partial renewal of hull plates in bilge, bottom and side areas.
  • Repair of bow and stern peak with replacement of plates, profiles and internal structures.
  • Dismantling, transfer, repair and reinstallation of the cargo pump drive motor.
  • Complete renewal of the painting scheme using SA 2½ blasting for hull and SA 1½ for deck.
  • Painting of draft marks, freeboard and maximum load signage on bitts and cleats.
  • Internal cleaning of tanks and cofferdams.
  • Pneumatic tightness tests.
  • Plate replacement: 3000 kilos

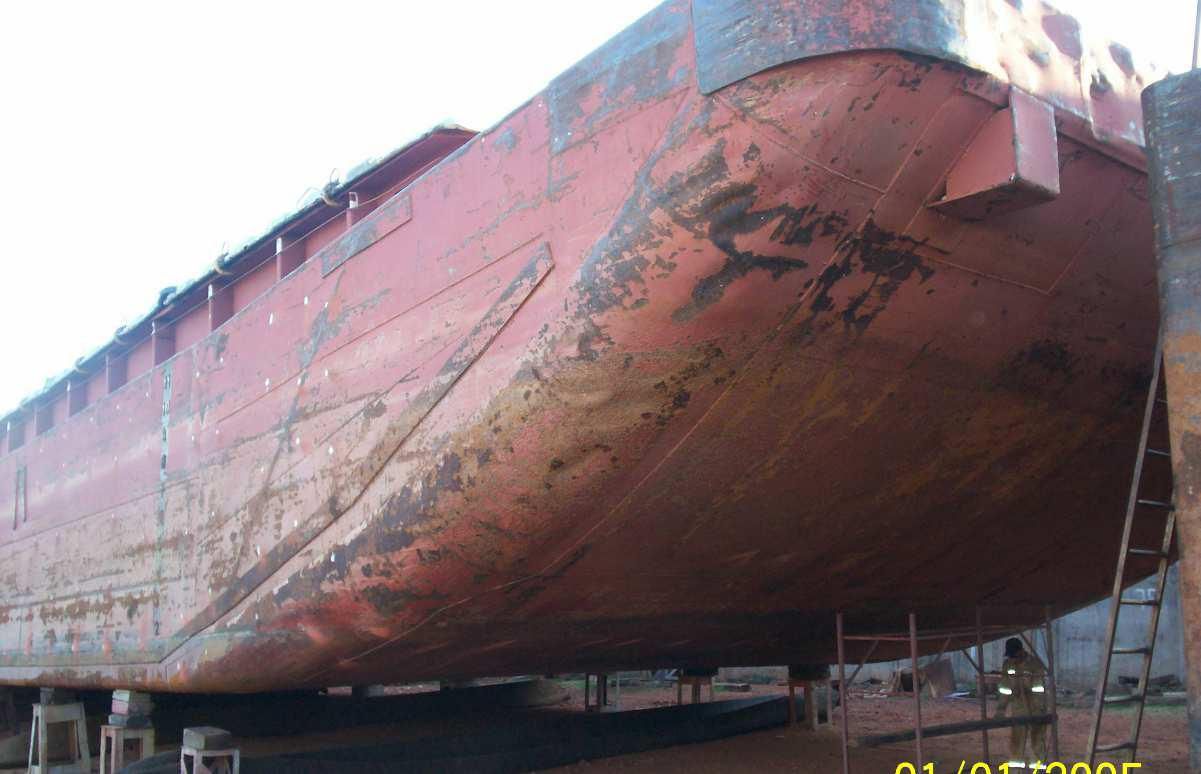

Barge U 74

Barge U 74 - Imagen 1

Client

Atria Logistics Solutions

Boat type

Solid bulk cargo barge

Timeline

Start: Junio 2025
End: Julio 2025

General specifications

Total length: 59,4 m
Molded beam: 10,6 m
Capacity: 1650 t
Molded depth: 3,66 m
Draft: 3,1 m

Work Performed

  • Dry docking.
  • Integral structural repair due to severe grounding.
  • Complete renewal of hull bottom and bilge, including more than 25 floors and longitudinal profiles.
  • Repair and replacement of plates and structure of bow peak and inclined bulkheads of hold.
  • Intervention in cofferdams (port and starboard), including replacement of deformed structures.
  • Repair of hold area affected by thickness loss and structural deformations.
  • Replacement of bottom plates and longitudinal bulkheads, calibration and smoothing of plates.
  • Painting of draft marks and freeboard.
  • Manufacturing of draft numbers in plate.
  • Plate replacement: 22,000 kilos.

Barge G 202

Barge G 202 - Imagen 1

Client

Atria Soluciones Logísticas

Boat type

Dry bulk barge

Timeline

Start: Marzo 2025
End: Abril 2025

General specifications

Total length: 59,4 m
Molded beam: 10,6 m
Capacity: 1780 t
Molded depth: 3,96 m
Draft: 3,4 m

Work Performed

  • Dry setting.
  • Complete renovation of the bow, bottom and deck mirror due to severe damage.
  • Replacement of sheet metal in the bilge area and structural reinforcements in the forepeak.
  • Repair of port and starboard cofferdams due to impact damage, including plates, L and UPN profiles, kicks and bularcames.
  • Repair of cracks and deteriorated welds.
  • Painting and renewal of draft and freeboard marks.
  • Manufacturing and installation of missing draft numbers.
  • Sheet metal change 7500 kilos
